Porter Basketball Backboard Replacement Electric Winch

Anthem Part
A55-352
As low as $1,899.95
ea
Add to Quote
Click this button to add items to the “My Quote” form listed at the top of the website. For larger orders you can submit this form for a team discount and receive a custom quote within the same business day.

* Required Fields

Click image to expand view

Contact us with a question about this product

WARNING California residents: may contain chemicals that cause cancer/reproductive harm www.p65warnings.ca.gov

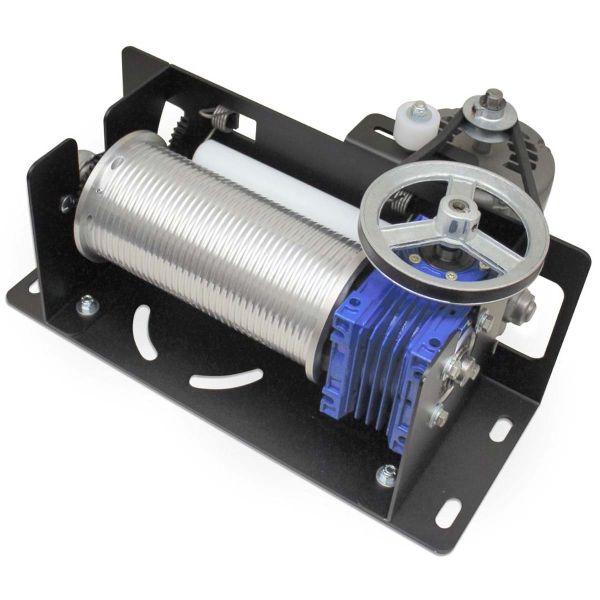

The Porter backboard electric winch is designed to hold the backstop at any position when raising or lowering. This winch is available with 3/4 horsepower and 1 horsepower, for additional speed and torque for heavier backboards. The winch was made for safety and features a heavy gauge, painted steel frame, and a 4" OD aluminum cable drum. This winch system has an external belt tensioner, for easy maintenance and adjustment, and a cable tensioner to keep the cable in place during slack conditions. The cable drum can fit 41 feet of cable in a single layer and has a top speed of 14.3 feet per minute. The Porter replacement winch does not include a key switch, or a control system and must be purchased separately. This winch system must be installed by a trained professional.

Add to Quote
Click this button to add items to the “My Quote” form listed at the top of the website. For larger orders you can submit this form for a team discount and receive a custom quote within the same business day.
Features
  • 4" OD aluminum cable drum
  • 41' cable capacity on a single-layer
  • External belt tensioner for maintenance and adjustments
  • Cable tensioner to keep in place during slack conditions
  • Designed to hold backstop at any position
  • Heavy gauge, painted steel frame
  • Available in 3/4-hp and 1-hp for speed
  • Top speed of 14.3-feet per minute
  • 170 ft-lbs torque for a 3/4-hp model
  • 226 ft-lbs torque for a 1-hp model
  • STEEL CABLE NOT INCLUDED
  • 5-year warranty
  • PROFESSIONAL INSTALLATION REQUIRED

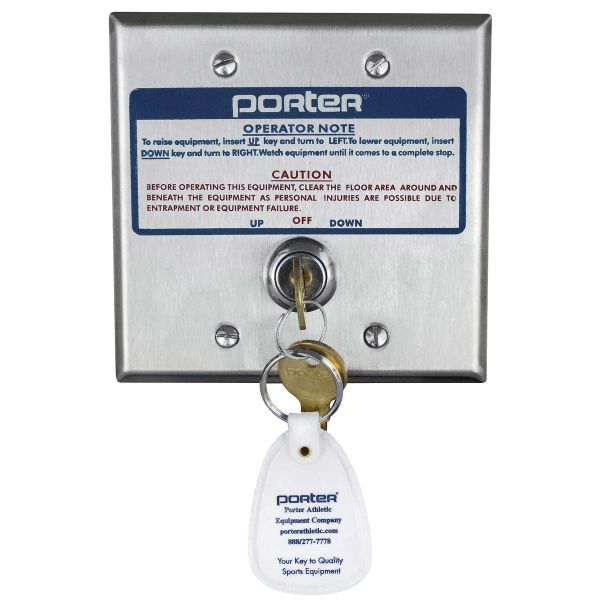

  • Key switch control purchased separately (see below)
